This 2014-2025 Lexus RC spacer size chart serves as the wheel fitment guide when you need to upgrade the vehicle with a set of wheel spacers. These wheel accessories can make a significant difference in the way your vehicle looks and performs. When it comes to select the best Lexus RC spacers, you may have to deal with some fitment issues. For your convenience, we make this spacer guide to help you quickly find the best flush spacer fitment sizes.
From track days to daily driving, there are many options for wheel spacers for a 2014-2025 Lexus RC F-Sport/ RC300/ 350/ 200t. This guide contains the specific bolt pattern (PCD), center bore (CB), various sizes, offsets, and spacer selection for you. It helps figure out the best wheel spacer size and the bolt pattern that is important for the correct fitment.
Let’s kick things off by looking at the factory Lexus RC wheel spacer sizing:
OEM Rim size and offset: 17-in/18-in/19-in/20-in +35 to +60 offset
Flush wheel spacer size: front 15mm / rear 20mm
Bolt pattern (PCD): 5×114.3mm
Center bore (CB): 60.1mm
Lug nut spec: M12x1.5mm
The above chart data is based on the factory Lexus RC (C10). Sometimes, wheel spacers are a good idea to widen the wheelbase to achieve a perfect flush wheel style. If you added bigger rims, wider tires, a wide body kit, or aero fenders, you can go with thicker wheel spacers to create a more aggressive and sportier stance. But it all depends on your personal preferences.
What is the Bolt Pattern on a 2014-2025 Lexus RC 350?
The bolt pattern of the 2014-2025 Lexus RC 300/350 is 5×114.3mm and the center bore is 60.1mm. Wheel lug pattern is one of the keys to identifying wheel dimensions. When installing wheel spacers you have to know the correct RC-F lug pattern. Because the Lexus RC spacer must have the correct bolt pattern to match your vehicle’s hub and wheel.
Generally, the wheel bolt pattern can’t be changed as it is specific to a certain car. But you can use proper Lexus RC wheel adapters to fit aftermarket wheels that come with different bolt patterns. For example, you can put 5×120 wheels on a Lexus RC F with a set of 5×114.3 to 5×120 wheel adapters. With a proper wheel adapter kit, you don’t have to spend hours looking for your certain RC-F measurements of bolt pattern.
What is the Torque Spec for Lexus RC Spacers?
The REFERENCE torque on the Lexus RC spacers will be 103 NM or 76 Ft-lb (just for REFERENCE, please inquire with a tire expert). When installing wheel spacers, it is recommended to check the RC-F owner’s manual or the official website for the correct torque specs. Note. It is critical to apply the correct amount of torque for Lexus RC spacers. Even if one lug nut is not tightened properly, the road impact may lead to the loss of the lug nuts.
How Much Does a Set of Lexus RC Spacers Cost?

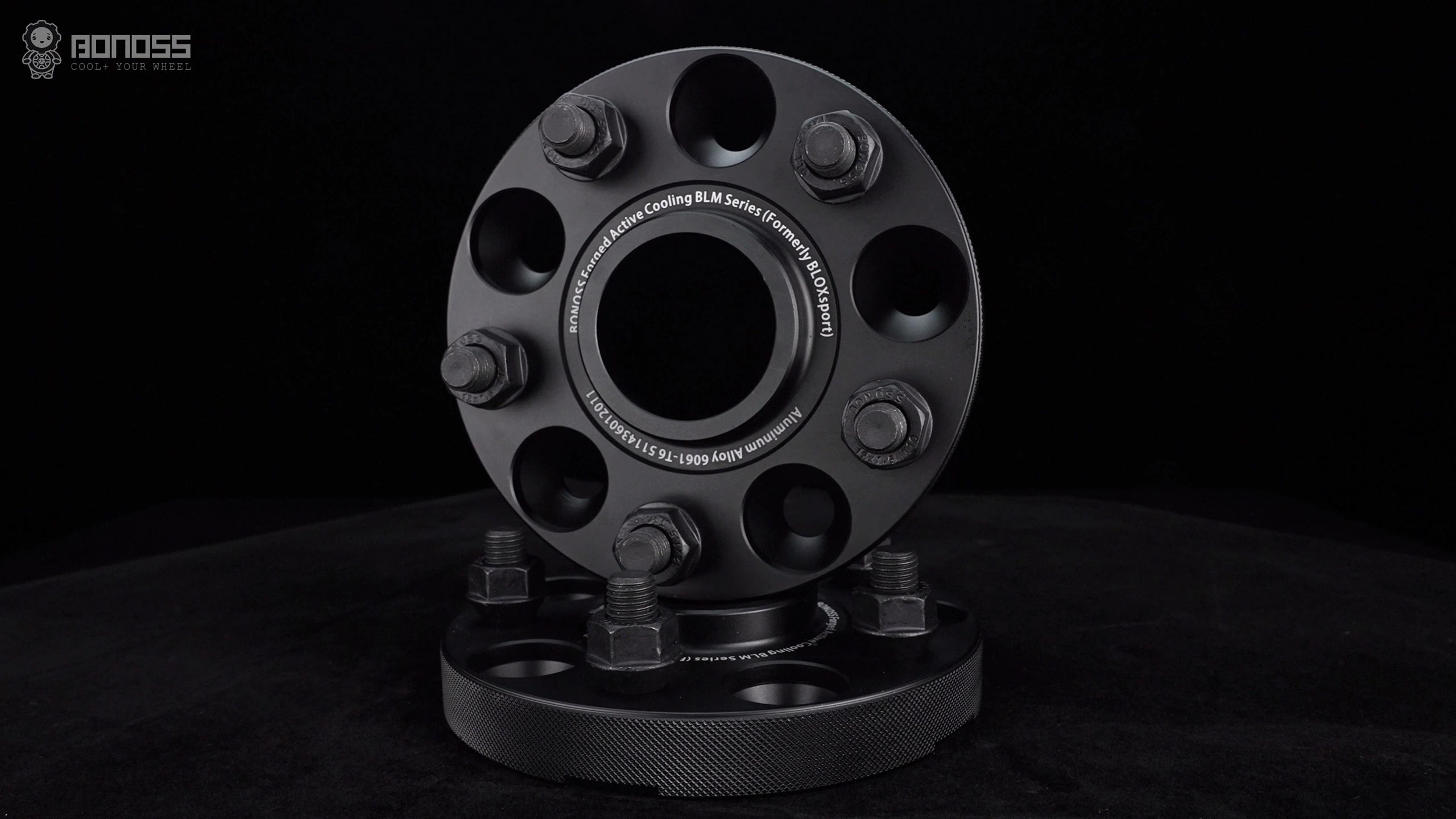

At between $246 to $518 for a set of four, the Lexus RC spacers are much cheaper than offset wheels. But they provide the same effect as many low-offset wheels. Always choose authentic brand wheel spacers. Because genuine wheel spacers are designed and built exquisitely. For example, BONOSS forged active cooling wheel spacers provide an active cooling function. These BONOSS wheel spacers are machined with heat dissipation grooves.
Distributed in petal shape, these heat dissipation grooves allow the external cold air to flow continuously inside the wheel spacer when it rotates. The air takes away the heat, so it achieves the purpose of actively dissipating heat for the braking system. Besides, the knurling patterns can enlarge the side area so that it can contact more air, boost the heat dissipation effect, and also reduce internal stress.
Are Lexus RC Spacers Safe to Use?
As long as you install them properly, high-quality Lexus RC spacers are safe to use. They can positively improve vehicle handling by providing better stability and traction. Particularly, BONOSS forged active cooling Lexus RC spacers come with ISO Grade 12.9 wheel studs and ISO Grade 10 lug nuts. These wheel lugs will undergo thoroughly a series of performance tests to ensure they can handle our scrutinous standards before leaving the factory.

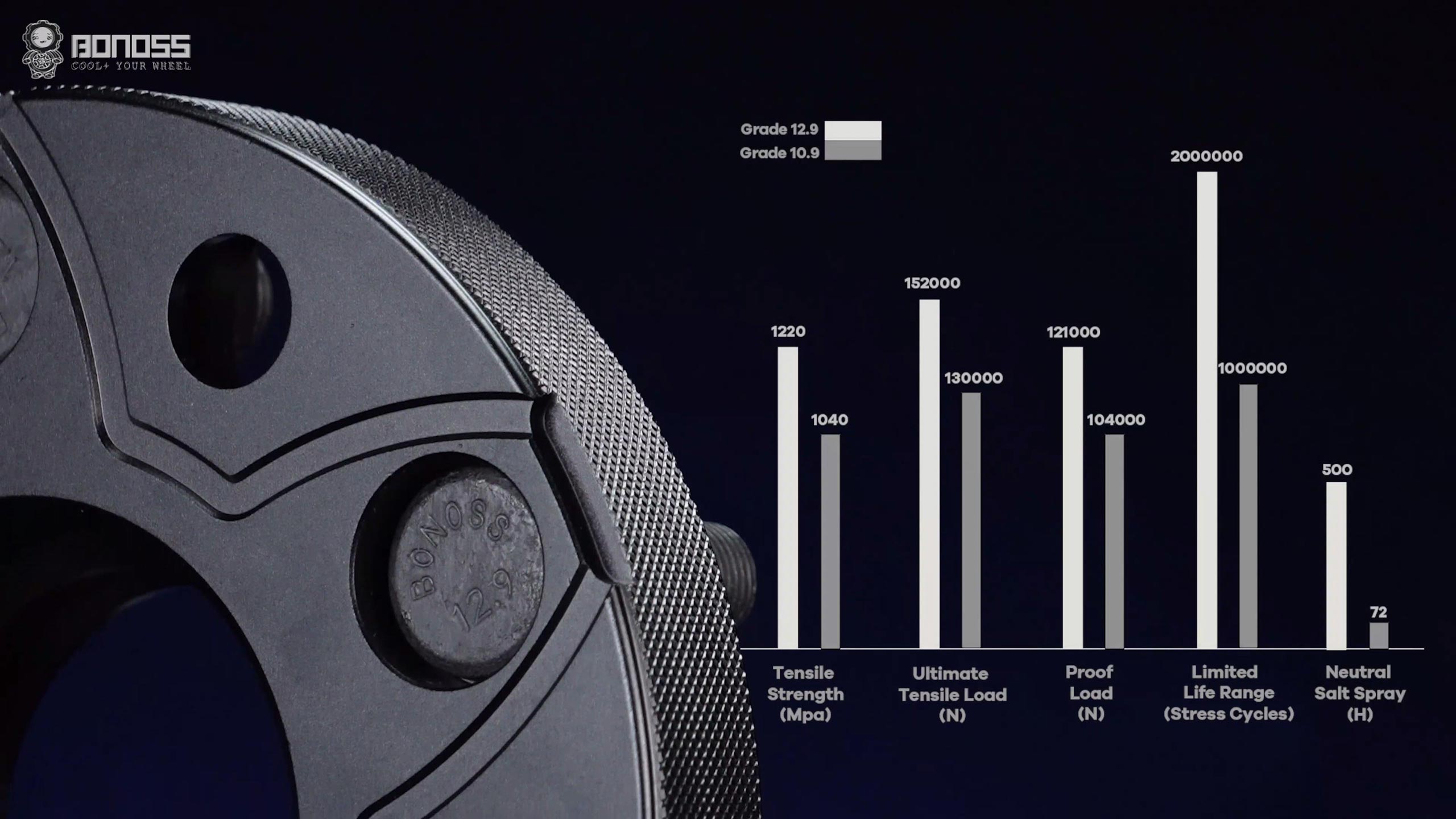

These ISO grade 12.9 wheel studs have a minimum tensile strength of 1,220 MPa, limited life range test≥ 2,000,000 stress cycles without damage, ultimate tensile load≥ 152,000 N, hardness (HV)≥ 395, and neutral salt spray≥ 500H. It makes sense that the higher the tensile strength of the stud, the more force it can withstand before breaking. With a high-quality user experience as well as a friendly price, BONOSS forged active cooling Lexus RC spacers are the best option for your wheel upgrades.
